    Tuff - Edge Endless Flat Lifting Slings With Reverse Eye Eco - Friendly

    Ask Lasest Price
    Brand Name : Dahua Sling
    Model Number : web sling
    Certification : OSHA regulations WSTDA standard
    Price : USD 30,000 / 20'GP
    • Product Details
    • Company Profile

    Tuff - Edge Endless Flat Lifting Slings With Reverse Eye Eco - Friendly

    Heavy Duty Synthetic Web Slings Endless Loop - Type 5 Synthetic Web Sling Yellow Polyester tuff tag


    • Model NO.: Webbing Sling
    • Material: Polyester
    • Fixed Form: Welding Type
    • Power Source: Lever
    • Certification: GS, SGS, CE, ISO 9001
    • Safety Factor: 7:1, 5:1 & 6:1 Also Available
    • Application: Used to Lifting
    • Trademark: Grandlifting or OEM

    All lifting straps manufactured or provided by NANJING DAHUA meet or exceed all OSHA regulations as well as WSTDA standards.


    www. dahua-sling.com

    Eye & Eye Tuff-Edge II Sling. Expect longer life, and lower overall cost with Tuff-Edge sling series. Tuff-Edge is more resistance to abrasion and edge cutting properties, giving you greater sling life and reduced sling costs.




    Webmaster Features:

    • Red core yarn warning system aids in the inspection process
    • Proven sling web construction
    • Tuff-Tag provides serial numbered identification for traceability
    • Wider bearing surface per capacity helps protect load surface
    • Tuff-Tag provides required OSHA information for the life of the sling, not just the life of the tag.
    • Special polmer coated edge yarns improve edge cutting and abrasion to extend life
    • Silver colored web treatment fights abrasion for additional sling life

    Lift-All Tuff-Edge II Eye & Eye Slings

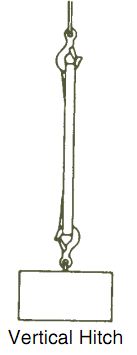

    ModelVerticalChokerVertical Basket
    One PlyEE1801TF 1” Wide1,600 lbs.1,280 lbs.3,200 lbs.
    One PlyEE1802TF 2” Wide3,200 lbs.2,500 lbs.6,400 lbs.
    One PlyEE1803TF 3” Wide4,800 lbs.3,800 lbs.9,600 lbs.
    Two PlyEE2801TF 1” Wide3,200 lbs.2,500 lbs.6,400 lbs.
    Two PlyEE2802TF 2” Wide6,400 lbs.5,000 lbs.12,800 lbs.
    Two PlyEE2803TF 3” Wide8,800 lbs.7,040 lbs.

    17,600 lbs.

    CAUTIONS:

    - Do not attempt to use sling above rated lifting capacity.
    - When selecting a sling,it is very important to consider the angles at which the sling will be used.
    - Slings are subject to cutting when ifting items with sharp egeds.In this case,always use protective sleeves
    - Do not use a damaged sling,and se only if trained.
    - Do not tie knots in sling webbing as strength is greatly reduced.
    - Never drag a sling beneth from a load which is resting on it.
    - Chemical active environments can affect the strength of slings
    - Inspect slings weekly or more frequently depending on the sling use conditions.
    - Always strore slings in a cool,dry and dark place to extend the working lift.
    - Always read and understand the operating instructions before use.
    - Failure to comply with this warning may result in serious load damageand death or injury.


    Material

    Polyester is resistant to moderate strength acids but is damaged by alkalis; polyamide (Nylon) is virtually immune to

    alkalis but is damaged by acids; and polypropylene is little affected by acids or alkalis but is damaged by some

    solvents, tars and paints.


    Capacity

    The sling must be both long enough and strong enough for the load and the slinging method. Apply the mode factor

    for the slinging method. For use at temperatures exceeding 80°C or below 0°C refer to the suppliers instructions. If

    the slings are used in multi-leg arrangement the angle formed between the legs should not be less than 30° or

    greater than 90°. If abrasion, heat generated by friction or cutting from edges or corners are likely, select a sling

    fitted with protective sleeves and/or use suitable packing.


    Storing and Handling Belt Slings

    Never return wet, damaged or contaminated slings to storage. They should be cleaned with clear water and dried

    naturally. Never force dry belt slings. Store belt slings hung from non-rusting pegs which allow the free circulation of

    air. The storage area should be dry, clean, free of any contaminates and shaded from direct sunlight. Do not alter,

    modify or repair a belt sling but refer such matters to a Competent Person.

    NOTE: The material from which the sling is manufactured may be identified by the colour of the label or printing on

    the label: Polyester = Blue, Polyamide (Nylon) = Green, Polypropylene = Brown and the sling may also be dyed with

    a colour code to indicate SWL.


    Using Belt Slings Safely

    Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures and the

    mode factors to be applied. Do not use defective slings or accessories. Check the correct engagement with fittings

    and appliances, ensure smooth radii are formed, do not twist or cross slings and do not overcrowd fittings. Position

    the sling so that the load is uniformly spread over its width. Position the bight for a choke lift at the natural (120°)

    angle to prevent friction being generated. Ensure that stitching is in the standing part of the sling away from hooks

    and other fittings. Take the load steadily and avoid shock loads. Do not leave suspended loads unattended. In an

    emergency cordon off the area.


    In-service Inspection, Maintenance and Replacement


    Inspect slings each day before use, looking for:

    • Missing or unreadable ID tag
    • Melted, charred or weld-splattered areas
    • Acid or alkali burns
    • Holes, tears, cuts, snags or embedded particles
    • Broken or worn stitching
    • Excessive abrasive wear or elongation
    • Knots or brittle areas
    • Broken, corroded, pitted distorted fittings

    Do not use worn or damaged slings or attachments. Discard or repair them. Use damaged slings only after they are repaired, reconditioned, and proof tested by the sling manufacturer or a qualified person. Keep certificates of proof test.


    Maintenance requirements are minimal. Belt slings may be cleaned with clear water. Remember weak chemical

    solutions will become increasingly stronger by evaporation. Regularly inspect belt slings and, in the event of the

    following defects, refer the sling to a Competent Person for thorough examination: illegible markings; damaged,

    chaffed or cut webbing; damaged or loose stitching; heat damage; burns; chemical damage; solar degradation;

    damaged or deformed end fittings.
