Polyester flat eye eye web lifting sling double ply for USA American Aisan Austraian and EU market

Technical Data
Material: polyester polypropylene
Safe Factor: 5:1 6:1 7:1 8:1
Standard : ISO4878 EN1492-1:2000 JB/T8521-2000
Length: as required
Color: color code
Ply: single. Double. three and four-ply

Type

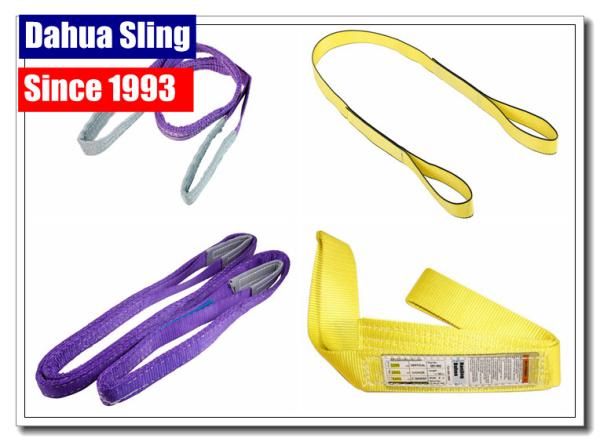

A. Eye and Eye Flat Webbing Sling
a, Single-ply Eye and Eye Flat Webbing Sling
b, Double-ply Eye and Eye Flat Webbing Sling
c, Three-ply Eye and Eye Flat Webbing Sling
d, Four-ply Eye and Eye Flat Webbing Sling
Remark: Sling eye is divided into flat eye, reverse eye, eye folded 1/2 from one side, eye folded 1/2 from two sides and eye folded 1/3.

TS -W06 EYE -EYE WEB SLING (U.S Double Ply)

Item No.	HEAVY DUTY LC (LBS)	LIGTH DUTY LC (LBS)	Width (in)	Longer (ft)
			5:1	Min	Max
TS -W06-01	3200		1	2	300
TS -W06-02	6400		2	2	300
TS -W06-03	8900		3	3	300
TS -W06-04	12000		4	4	300
TS -W06-05	14250		5	4	300
TS -W06-06	18000		6	5	300
TS -W06-08	22800		8	6	300
TS -W06-10	28000		10	8	300
TS -W06-12	33600		12	8	300

TS -W07 EYE -EYE WEB SLING ( U.S Single Ply)

Item No.	HEAVY DUTY LC (LBS)	LIGTH DUTY LC (LBS)	Width (in)	Longer (ft)
			5:1	Min	Max
TS -W07-01	1600		1	2	300
TS -W07-02	3200		2	2	300
TS -W07-03	4800		3	3	300
TS -W07-04	6400		4	4	300
TS -W07-05	8000		5	4	300
TS -W07-06	9600		6	5	300
TS -W07-07	12800		8	6	300
TS -W07-08	16000		10	8	300
TS -W07-09	19200		12	8	300

TS -W08 EYE -EYE WEB SLING (U.S Three Ply)

Item No.	HEAVY DUTY LC (LBS)	LIGTH DUTY LC (LBS)	Width (in)	Longer (ft)
			5:1	Min	Max
TS -W08-01	4100		1	4	200
TS -W08-02	8200		2	4	200
TS -W08-03	12300		3	6	200
TS -W08-04	15300		4	6	200
TS -W08-05	22500		5	8	200
TS -W08-06	23000		6	8	200
TS -W08-07	34000		8	10	200
TS -W08-08	36000		10	10	200
TS -W08-09	46000		12	10	200

TS -W09 EYE -EYE WEB SLING (U.S Four Ply)

Item No.	HEAVY DUTY LC (LBS)	LIGTH DUTY LC (LBS)	Width (in)	Longer (ft)
			5:1	Min	Max
TS -W09-01	6100		1	4	200
TS -W09-02	12200		2	4	200
TS -W09-03	18000		3	6	200
TS -W09-04	24000		4	6	200
TS -W09-05	30000		5	8	200
TS -W09-06	36000		6	8	200
TS -W09-07	45000		8	10	200
TS -W09-08	55000		10	10	200
TS -W09-09	66000		12	10	200

TS -W10 Endless Webbing Sling ( U.S Single Ply)

Item No.	HEAVY DUTY LC (LBS)	LIGTH DUTY LC (LBS)	Width (in)	Longer (ft)
			5:1	Min	Max
TS -W10-01	3200		1	4	200
TS -W10-02	6400		2	4	200
TS -W10-03	8900		3	6	200
TS -W10-04	12000		4	6	200
TS -W10-05	14250		5	8	200
TS -W10-06	18000		6	8	200
TS -W10-07	22800		8	10	200
TS -W10-08	28000		10	10	200
TS -W10-09	33600		12	10	200

TS -W11 Eye -Eye Webbing Sling (South America Double Ply)

Item No.	WLL (kg)	Color	Width (mm)	Longer (m)
			7:1	Min	Max
TS -W11-01	1000	Violet	2.5	0.5	100
TS -W11-02	2000	Green	5.0	0.5	100
TS -W11-03	3000	Yellow	7.5	0.8	100
TS -W11-04	4000	Grey	10.0	1.0	100
TS -W11-05	5000	Red	12.5	1.5	100
TS -W11-06	6000	Brown	15.0	2.0	100
TS -W11-08	8000	Blue	20.0	2.0	100
TS -W11-10	10000	Orange	25.0	3.0	100
TS -W11-12	12000	Orange	30.0	3.0	100

DAHUA SLING, established in 1993, designer and manufacturer of polyester webbing sling, round sling, endless sling, ratchet tie down, cam buckle straps, winch strap, towing straps and other cargo control products.

In the past two decades, Dahua sling enjoyed high reputaiton in over 60 countries and regions.

it's one of the leading vendors of slings and straps equiped with modern in-house facilities for processing, assembling and testing. All the processes are performed under supervision as per CE, SGS , TUV and ISO9001:2008 International Quality Standards.

Workshops are equipped with over 150 sewing machines, 80 webbing machines, 6 dyeing machines.

Most of our 200 workers have more than ten years sling experiences.

Welcome all the customers to build business relationship with us!
